Fully Automatic Numerical Control Lock Stitch Quilting Machine

電子制御ロックステッチキルティングマシン

Y&Y-MULTI-48 (64)

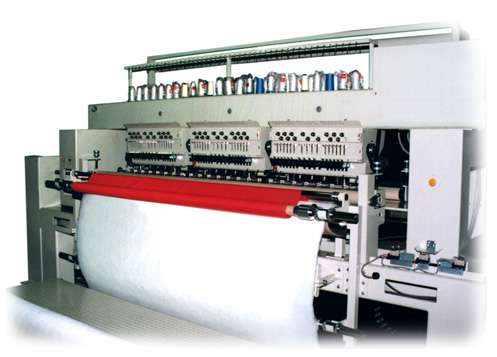

Y&Y-MULTI-48_Photo
                       この製品は生産終了しました。
より繊細なキルティングを‥‥!!
More delicate quilting for answering consumers needs!! Y&Y-MULTI-48 (64)

本機Y&Y-MULTI-48は、3頭式48本針、各頭部16本針(前後各8本針/針間隔前後左右各100mm)を採用し、従来機に比べより繊細なキルティングを実現しました。(16針単位で頭部を増減できます)
布送りは、電子制御サーボモーターにより正確に模様を縫合することができます。
布の送り方式は、ローラーにより前後方向にのみ送り駆動が行われ、左右方向への移動はミシンフレームが移動しますので縫合物のねじれ等がなく正確な模様が可能になり、かつ布の蛇行等に対する修正作業が軽減されました。

同時3軸制御NCのためミシンの縫い目ピッチは一定となります。ミシンの縫い目ピッチは、0.1mm〜9.9mmまでの間で自由に設定することができます。
NC制御の3軸のモーターは、全てブラシレスサーボモーターを使用していますのでメンテナンスフリーです。
ミシンヘッド及び釜部は、自動給油システムの採用で長期間安定した使用が可能です。
全ての針は個別に上糸切れセンサーを備え、上糸切れが発生した場合直ちに動作を停止させ糸切れが発生した針番号をモニター画面で知らせます。
自動縫製及び裁断装置の併用により製品寸法の4辺が人手を要さずに完成します。(オプション)
各針個別に布押えが設けられているので薄物〜中厚物まで確実にキルティングすることが可能です。
下糸は、2倍釜を採用することにより高速で効率よくキルティングできます。
FEATURES This machine finished production.
The model Y&Y-multi-48 has 24 needles each in front and rear roes, 48 needles in total. The clearance between needles is 100mm in both front-rear and left-right directions.16 needles are mounted to one head which compose a single block. Thus, the number of needles is to be increased in steps of 16 needles. Therefore, this machine can create finer and more delicate patterns than the conventional machines.
Quilt material feeding by servomotor provides correct pattern matching and stitching. Material is only fed forward and backward, and when moving of pattern to right and left side is required sewing frame itself moves. This system enables getting correct pattern matching and less twist when materials stitching together. Further, less reworking by operator for meandering is possible.
Because of 3 axes NC control system, uniformed sewing pitch is available as required. Any sewing pitch setting done easily in the range of 0.1~9.9mm.
NC control, 3 axes motor equipped brush-less servomotor enables maintenance free.
Automatic lubrication system to sewing head and rotating hook portion gives longer term and stable operation.
Every needles has its independent upper thread breakage sensor. When thread is cut, operation stops and also, informs a monitor screen by a needle number of thread breakage.
By using automatic side cutter sewing machine & automatic panel cutter with sewing machine, need not man-power makes done all edges of quilts. (option)
This machine can quilt thin to thick materials certainly and beautifully by using individual presser foot for each needles.
This machine can quilt efficiently and speedily by using double large rotating hook for lower thread.
